11 November 2013

Get a Pi

You have to get a Raspberry Pi


 A computer for $35?

The Raspberry Pi computer has the optimal combination of price and power. While it will  not replace your laptop or desktop, it can do a lot for the price of week's worth of Starbuck's coffee.

If you want to use the Pi as a standalone computer, you will need a keyboard, a mouse, a power source, and a monitor (as long as it has an HDMI connection). Unless you have these hanging around, the Pi might not be worth the trouble. But you can do a lot with the Pi even with out the extras.

Different distros, different uses

Since the Pi was first let loose on the world, many people have made different variants of the main operating system (OS) that can be used. Imagine a version of Windows tailored for high school teachers, a different one for senior citizens, one for bankers, etc.

The general purpose OS for the Pi is Raspbian. For those familiar with Linux or even Windows or OS X, it will look familiar (what you see above). If you plopped  most people in front of a monitor showing the above, they could figure out what to do within a few minutes. But what can you do without a monitor?

The Headless Horseman

As with any computer, the Pi can be run "headless", in other words, without a monitor. While it requires that the Pi is connected to your home network and that you know how to find its IP address. You also need to know how to use SSH and VNC on another computer. There are plenty of sites available to help you. Here is a good one. This is the main use of my Pi so that I can listen to internet radio stations like Xponential Radio and WQXR2 (Living Music, Living Composers).

A New SD Card, a New Computer

What is also nice is that the OS is stored on an SD card. That means that you can easily swap cards and have another OS for your Pi. One that I am currently trying is one that make your Pi a high-end audio server. While it is still in the development stages, it has promise, and when I want to do something different, I just pop out that card and put in another one.

Another use for the Pi is as a video media server. Since it has an HDMI output, you can connect it to any TV with such ports. One such distro is Raspbmc. I have not tried it yet since I am still in the stone ages with TV (it's a CRT). You can see a list of other distros can be seen here.

It can be hidden.

One last use that I want to mention. Since the Pi is small, it can be tucked away in the corner of a typical academic office and not noticed. I did that to a colleague, and attached some old computer speakers turned up loud. Since the Pi was connected to the school's network, I could control it from my laptop in my room at the other side of the building. At a time when I knew he was alone in his office, I started the Pi playing some hideous Christmas music. After an initial fright, he knew who to blame. At least he didn't crush the Pi.

09 November 2013

The Crusher


Every year, on the Saturday before Thanksgiving, the Western New York Physics Teachers Alliance (WNYPTA) puts on its Physics Olympics for area high school and middle school students. We try to make it a low-key affair (one member calls it "the anti-Science Olympiad").

The Crusher

One of the traditional events at the Physics Olympics is the structure building contest. The actual structure changes from year to year. We have built bridges, cranes, towers, and cantilevers with the usual craft sticks and hot glue or sometimes with straws and toothpicks or other material. What I want to share on this blog post is how we test-to-failure some of these structures. Years ago, we used the usual low-tech methods like hanging a bucket from a bridge and gradual filling it with water. While time-honored, I wanted to add a little razzle-dazzle to the event. So I made the Crusher (seen below with the latest version at the end of this blog).


The Crusher is a simple structure; it is just a crate that holds a Vernier Force Plate on the bottom and the loading mechanism above. That mechanism consists of an old scissors car jack with a swiveling plate below (to make sure that the load is applied across the structure even if it is not built perfectly level). With a computer running Vernier's LoggerPro software and projecting to a screen at the front of the room, the entire room can watch the as the load is increased until failure. You can see an example in the background of the above picture. And we can print out the graph for the team to bring back to school for bragging rights.  However, there was one detail that took me a while to figure out.

The Razzle-Dazzle

The one detail that I wanted for the display was to have the Maximum Load shown. The problem was that meter-display box would show the current load. Once the structure was compromised, the display would not show the maximum. However, after a couple hours of trying various settings, I figured out what to do. I include the details below for those readers who use Vernier products and who might want to do similar.

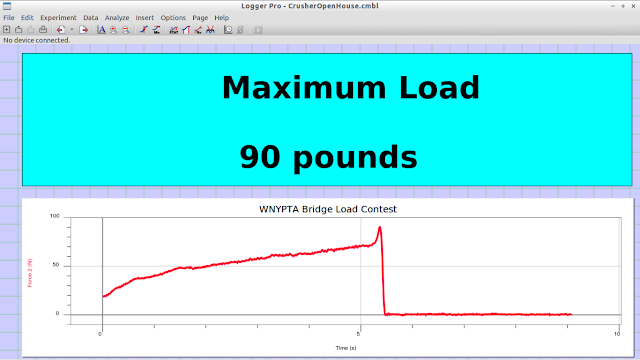

First set up two pages in LoggerPro. One page will have the raw data in spreadsheet form. Add a "calculated column" which stores the maximum value of the "Force" column. On the second page, add a graph of the Force and a meter showing the Maximum Force. Here is what took me a few hours to figure out; there is an option under the "Experiment" toolbar called "Live Readouts". When zeroing-out the Force Plate when the structure is placed on it, the "Live Readouts" options has to be enabled, but then it has to be un-enabled when the load is being applied and until after the print-out of the graph has gone through. If you are successful, you will get a page showing something like below.

If you are interested in using this setup in your classroom or extra-curricular activity, I am willing to share the LoggerPro file.  Just email me at the blog's associated address.

More Razzle-Dazzle

This year, I am going to add a new component. Vernier's DataShare feature (which I have written about before) will allow me to broadcast this graph to those students (and parents) who have smart-phones with a web-browser.

Here is an example of the WNYPTA cantilever event from 2011 using the same LoggerPro setup as above but with a Force Sensor instead of the Force Plate. The scoring for this event was based on the product of the lever arm distance and the maximum load. By inserting a Parameter Control, I can input the length of the arm and LoggerPro will calculate the above product and display it for all to see up front.


The Crusher, 2nd Modification

You might have noticed a major problem with the version of the Crusher shown above; it applies the load to the top of the bridge. One of my projects this summer was to modify the Crusher to apply the load to the deck of the bridge so that I can use it in the Intro to Engineering course I am teaching this year. You can see that major modification below. In essence. I just added a removable rod that can go through the bridge and apply the load inside.

Here are some hints if you want to build one of your own.

Bill of Materials

Scissors Jack
     you can borrow the one from your car or find one at a junk yard for $5-10

Top and bottom plates
     I modified an old teacher cart in the example above, and have used old pressboard from an Ikea desk for another, but you can make yours with some scrap plywood and scrap 2x4 lumber screwed in at the corners to attach the pillars.

     hockey sticks are used here simply because I had a number of them available, but you can use 1x3 or 2x2 lumber available at your local hardware store. If you have four 2-3 foot long 2x4’s lying around, you could use those also but the structure will be heavier. Start with 3 foot lengths since you can raise the Force Plate with books if needed. You can trim them later when you have a better idea about what height you need.

Load Frame
     the lumber you use for three parts of the frame (the horizontal member attached to the scissors jack and the two vertical members) can be the same that you use for the pillars, however, the lumber you use for the load member you need to choose with care. It, along with the Load Foot (see below), need to be small enough to pass through the bridges you are having your students build. For the bridge I show in the photo, the pass-through is about 2 inches square. I hold the lower member to the load frame with steel and magnets to facilitate easy disassembly, but you could attach with a couple of rubber bands.

Load Foot
     If you want to exert the downward force on only a small portion of the structure, you will need to affix a load foot to the lower load frame member. I have used the swivel head of an old C-clamp to allow the load foot to compensate for less than level bridge decks. The car was added just for whimsey.

Structure Supports
     If you want to specify a bridge-span wider than the Force Plate, you will need to tack together a simple frame. Easy enough to do with any scrap you have around.
